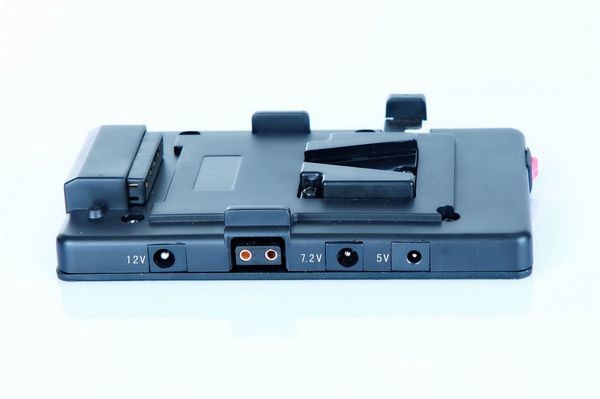

DSLR Power-Supply System
Главная / DSLR комплекты и аксессуары / DSLR Power-Supply System5D2 Power-supply System
Technical Parameter: Test Items (+25℃) input 14.4V First Channel Output Voltage (12v) 12.00±0.25V Second Channel Output Voltage (7.2v) 8.10±0.25V Third Channel Output Voltage (5v) 5.00±0.25V Consumption Current when working TYP. 40mA Consumption Current when shutdown TYP. 270uA Overcurrent Protection Value TYP. 2.4A First Channel Output Protection Voltage TYP. 12.5V Second Channel Output Protection Voltage TYP. 8.6 V Third Channel Output Protection Voltage TYP. 5.5 V Input Minimum Voltage TYP. 13.3 V Input Maximum Voltage TYP. 17.0 V Overpressure Protection Control Mode close and lock the output Overcurrent protection Control Mode constant current output Working Ambient Temperature -20℃--45℃
